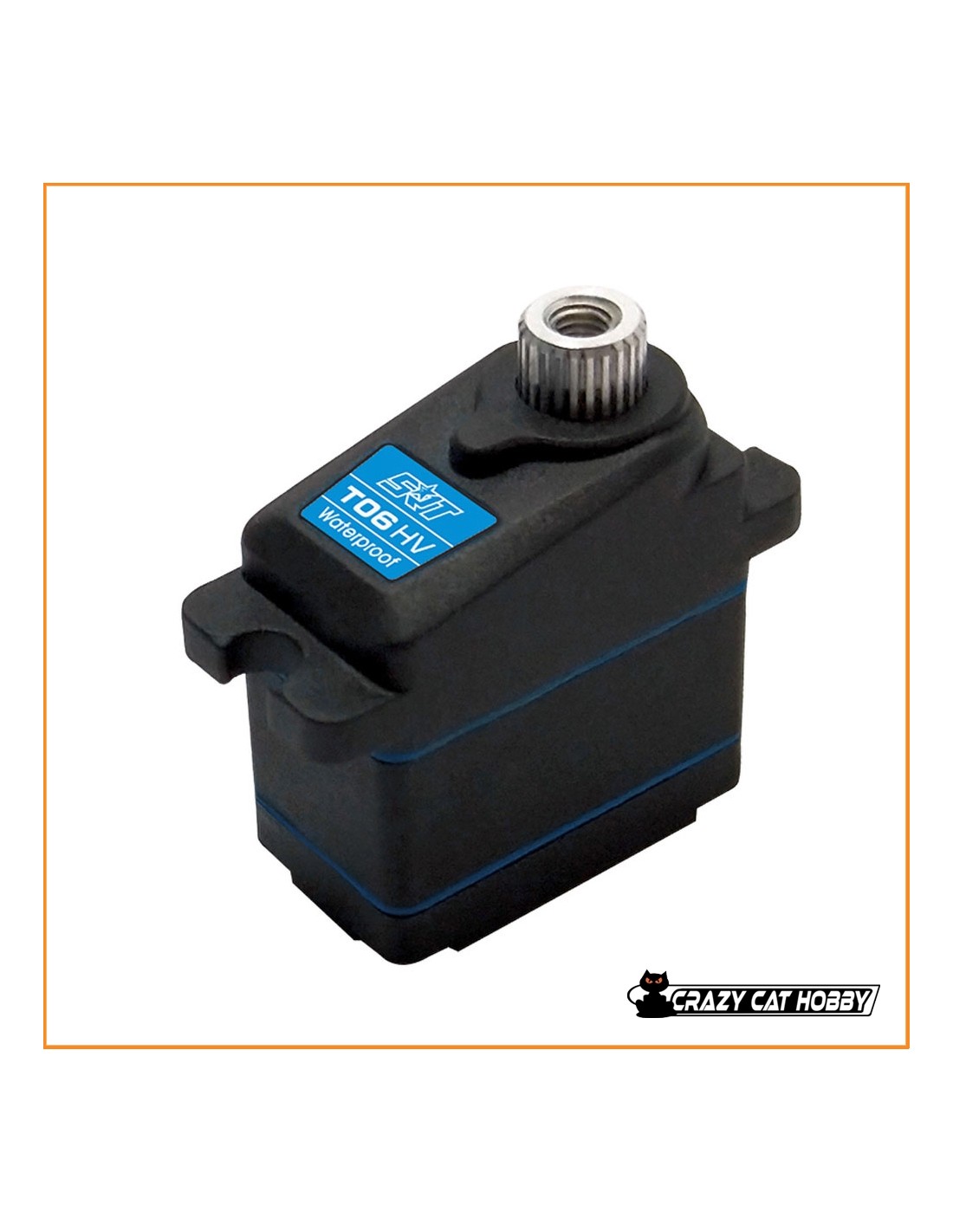

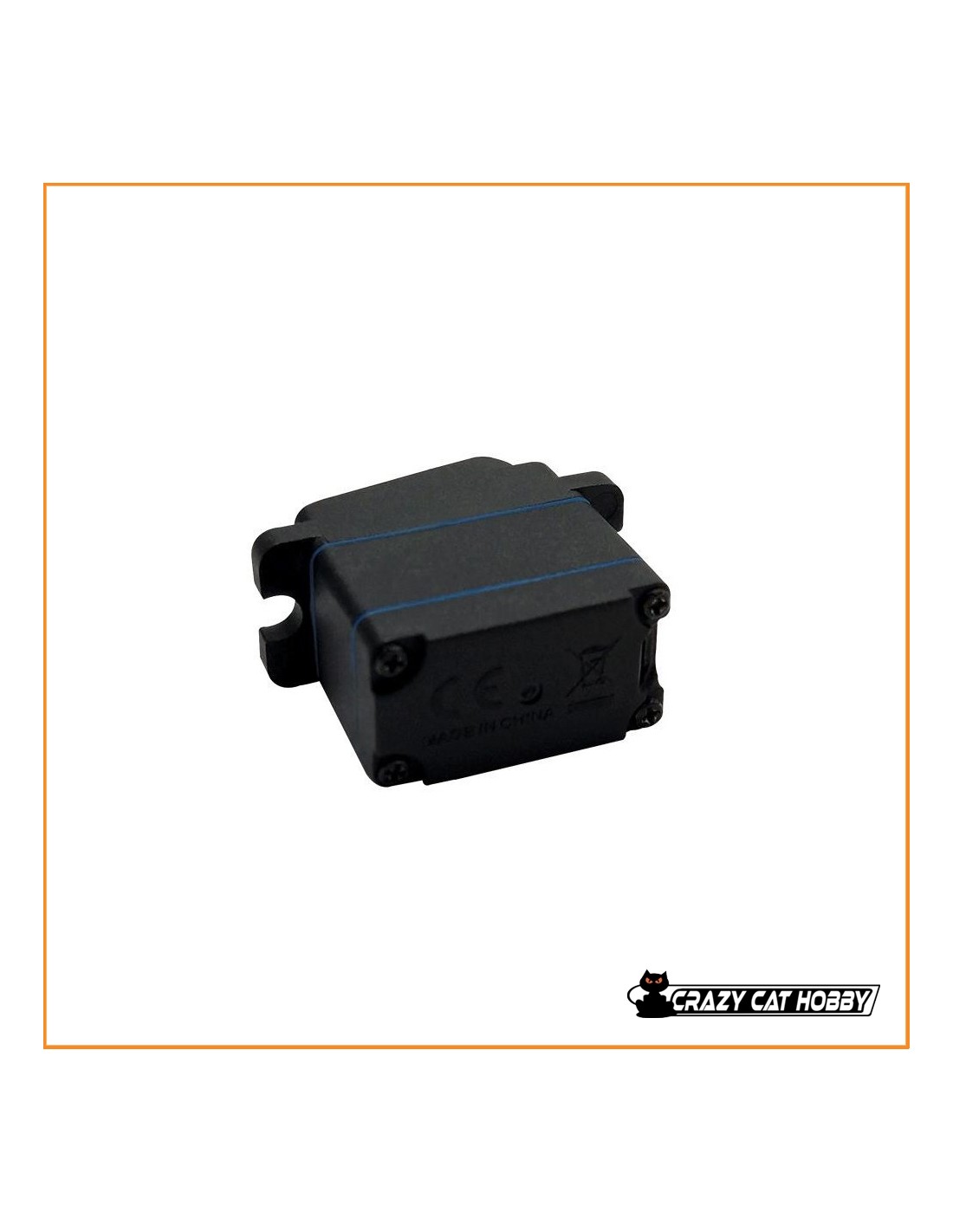

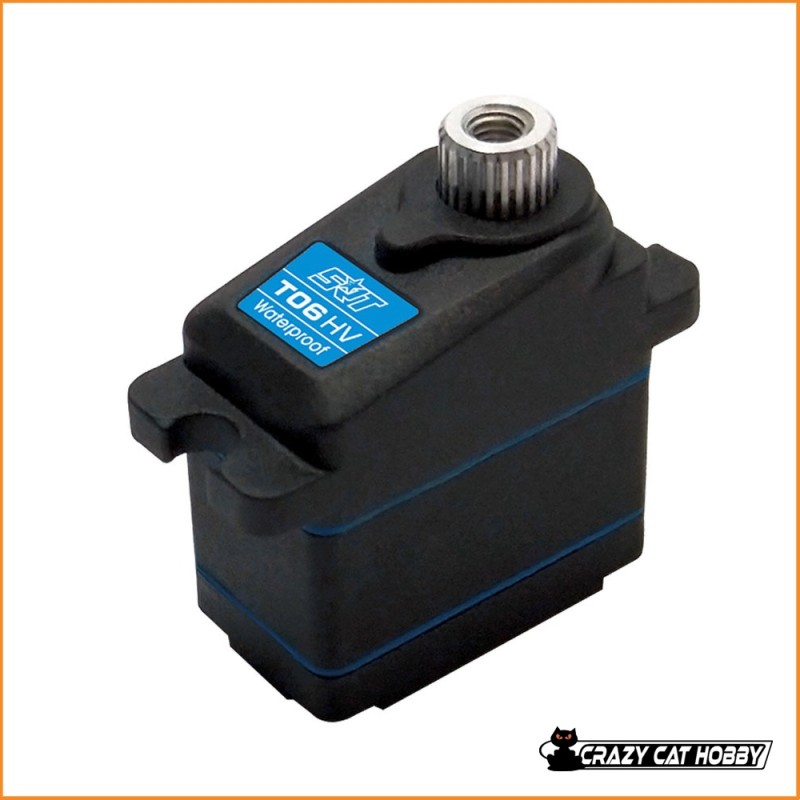

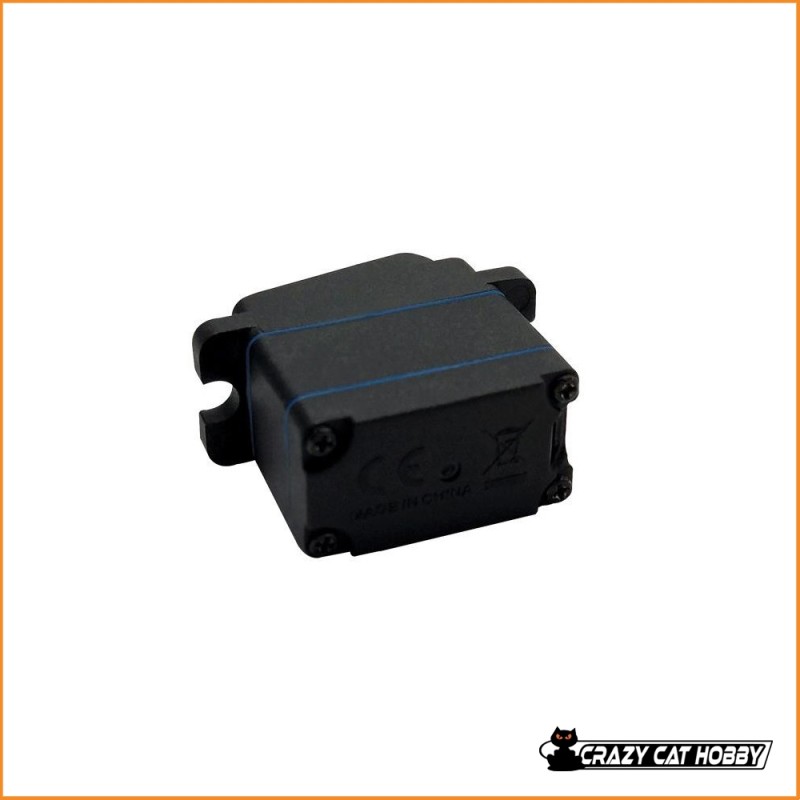

SRT T06 WATERPROOF MICRO DIGITAL SERVO HV 2.8 Kg/0.10 sec - 6-7.4v

SRT T06 WATERPROOF MICRO DIGITAL SERVO HV 2.8 Kg/0.10 sec - 6-7.4v

Applications :

Ideal for differential locks and mechanical gear shift crawler

Technical features :

• Type: Digital
• Bearing: Double
• Motor type: DC
• Gear type:
• Metal gear Material: Copper and aluminum
• Control system: Pulse width control
• Working frequency: 1520 Œºs / 330 Hz
• Operating voltage: DC 4.8-7.4 V
• Operating temperature range: -10 to + 60 degrees
• Operating speed (4.8 V): 0.16 sec/60 degrees without load
• Operating speed (6.0 V): 0.12 sec/60 degrees without load
• Speed operating speed (7.4V): 0.10 sec/60 degrees without load
• Stall torque (4.8V): 1.9 kg.cm (26.4 oz/in)
• Stall torque (6.0V): 2.5 kg.cm (34.7 oz/in)
• Stall torque (7.4V): 2.8 kg.cm (38.9 oz/in)
• Potentiometer drive: Direct drive
• Dimensions: 22.5x12. 5x24.0 mm / 0.89x0.49x0.94 inches
• Weight: 16.0 g (0.56 oz)
• Connector wire length: jr 300 mm

Brand: SRT Racing

Art: T06

EAN: 6969006060613

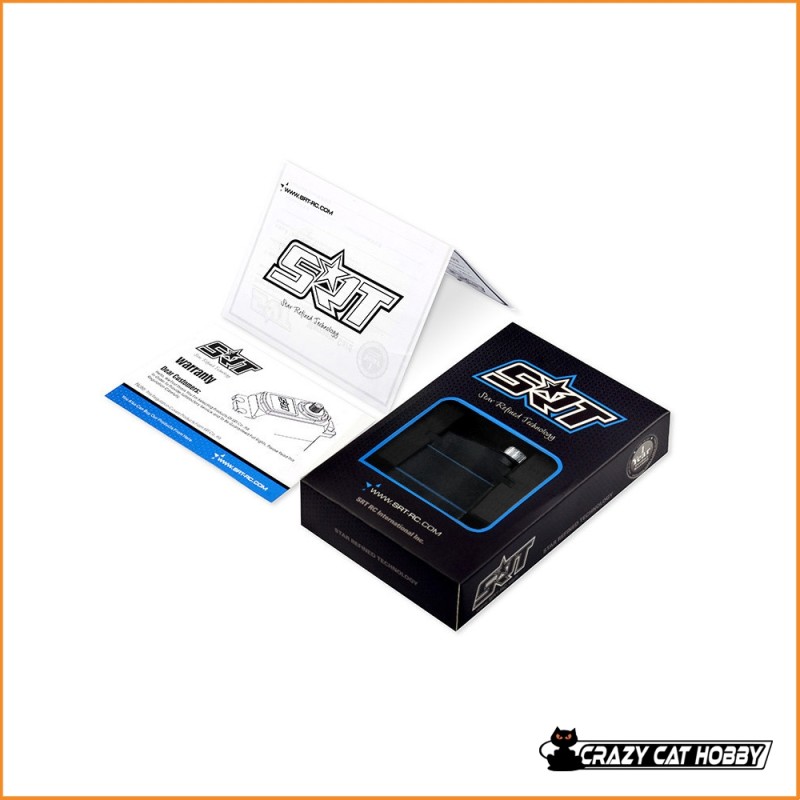

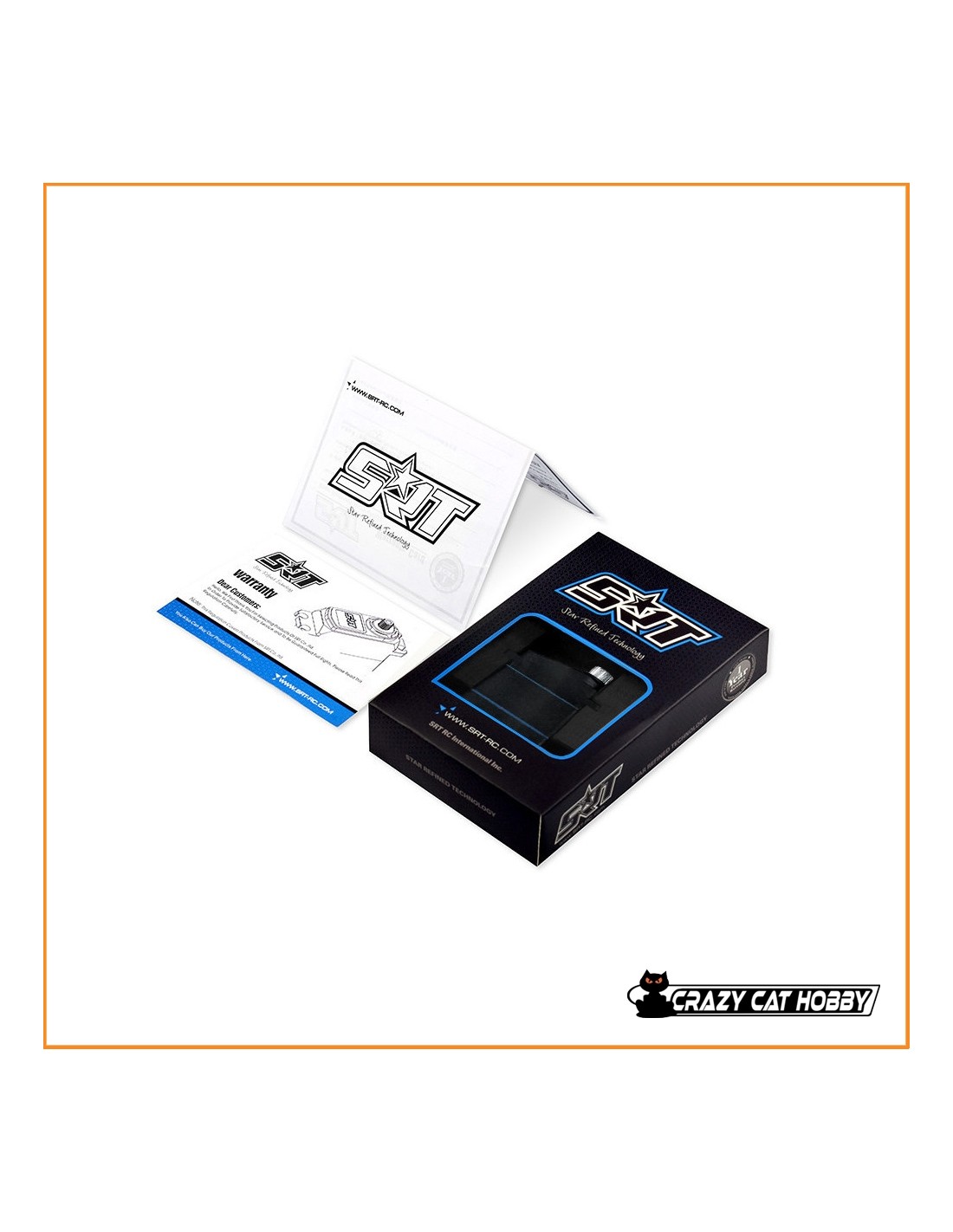

Package content: 1 x T06 servo plus accessories for operation
