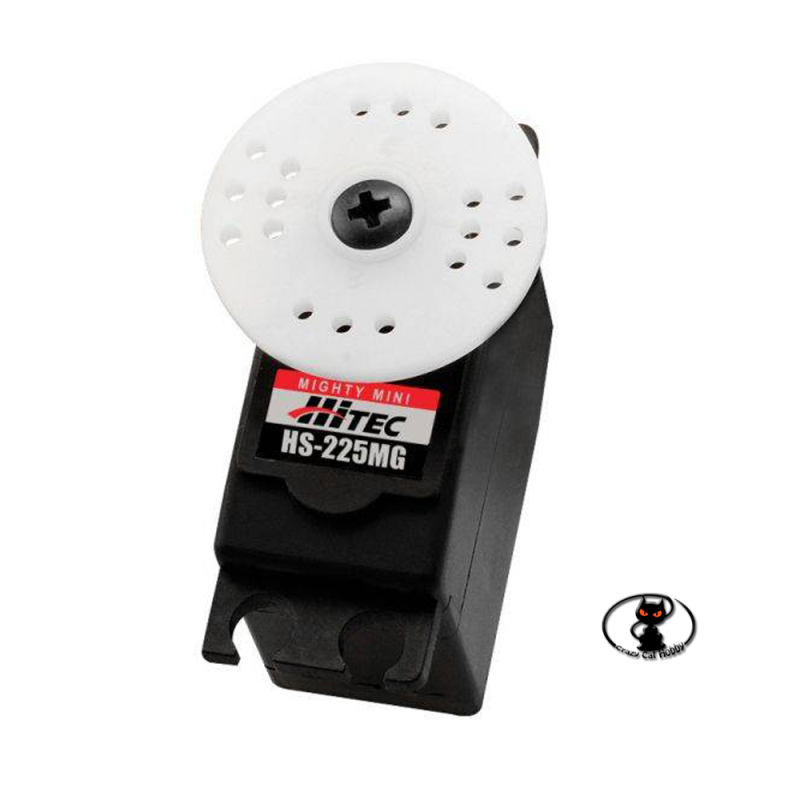

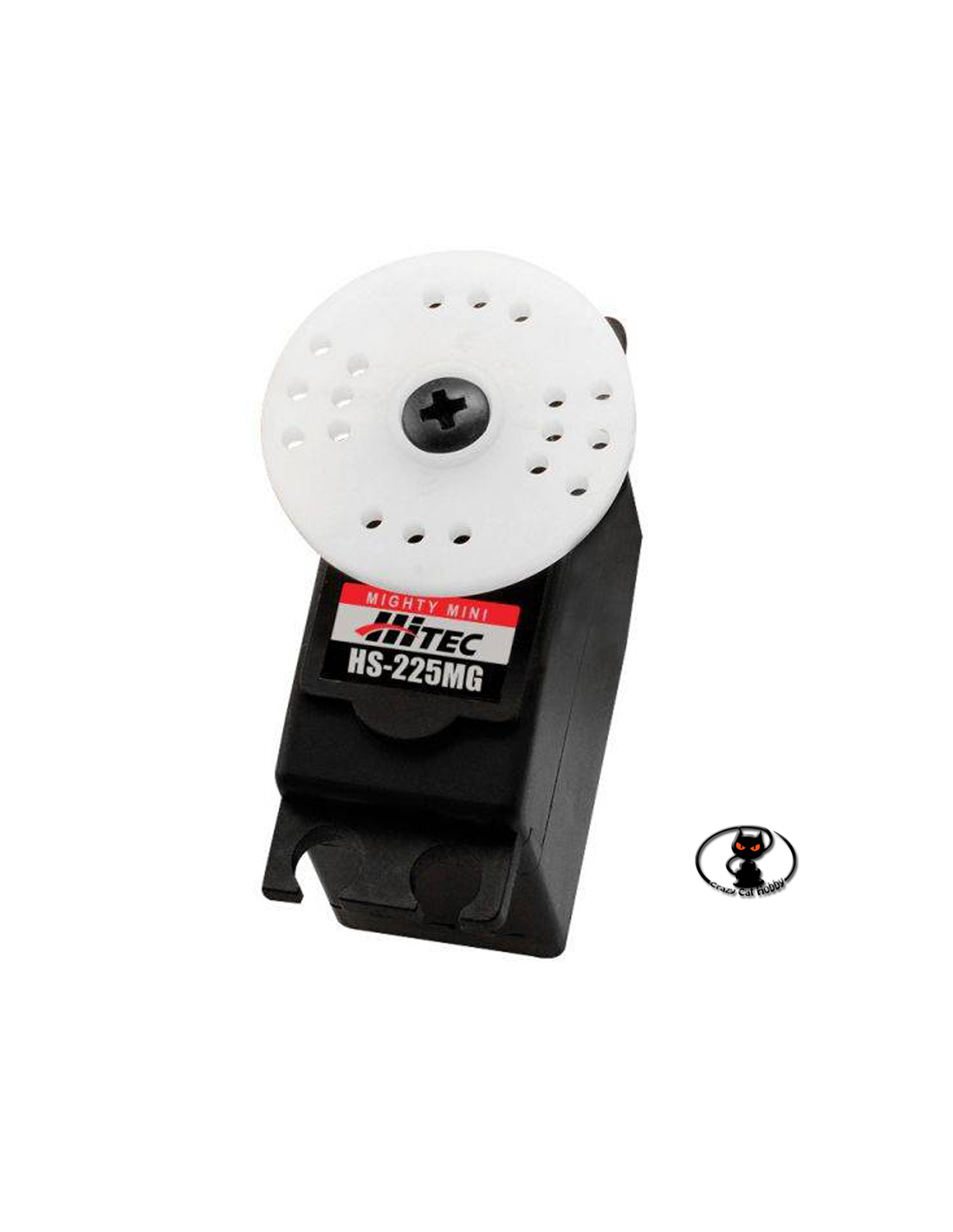

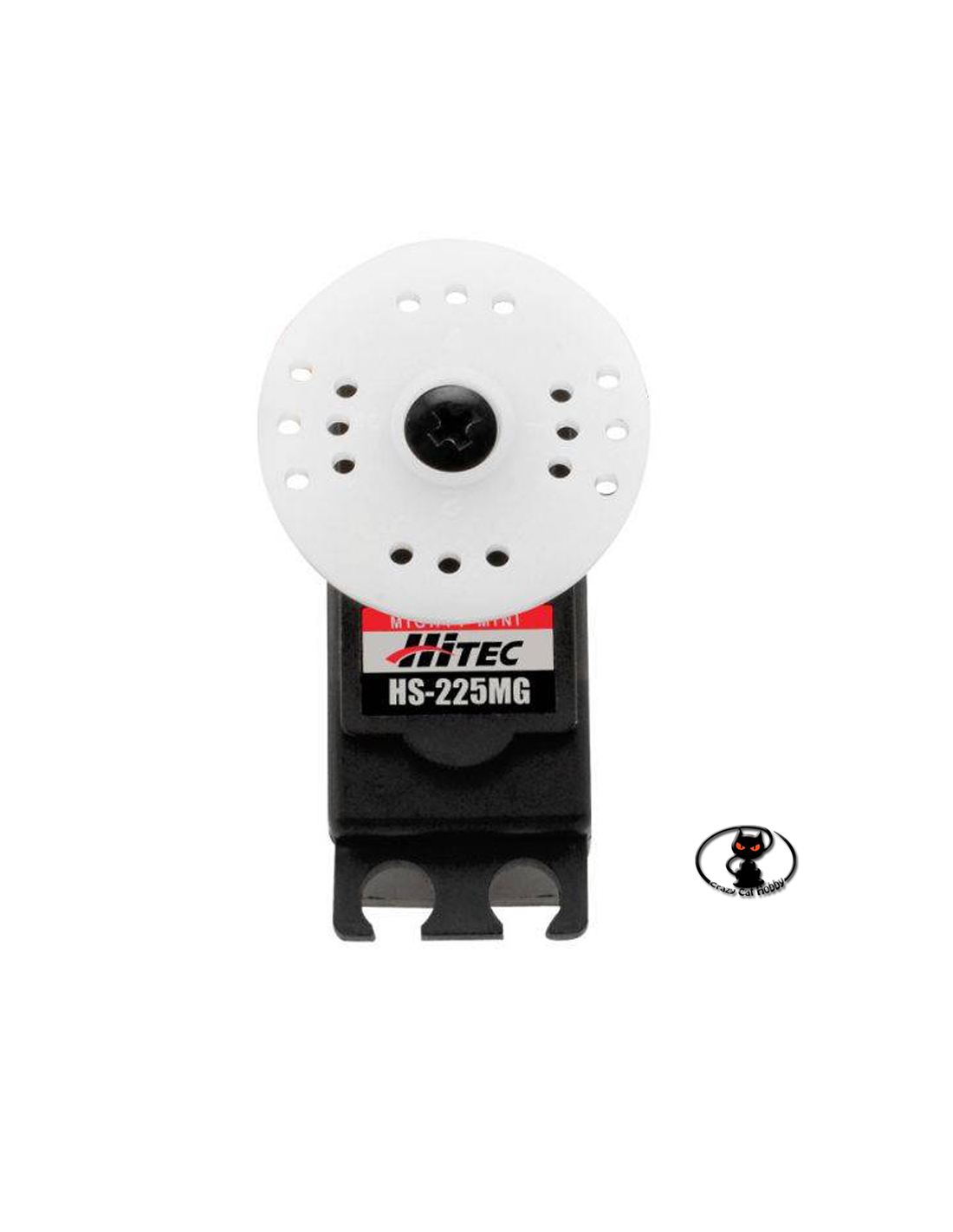

The Hitec HS-225MG analog servo is a good compromise between performance and size, making it a rival for larger servos.
Ideal for applications that require a small, light, high speed servo control, high torque value, and mini size, the HS225MG servo works on a top ball bearing, and is built to the state of the art with SMT technology.
- Great performance with mini dimensions
- Metal gears
- Quality ball bearings
- Perfect for applications that require a small, light, high speed, high torque servo
Technical features :
- Engine: 3 Poles
- Bearing Type: high quality bearings
- Speed (4.8V / 6.0V): 0.14 x 0.11 sec @ 60 deg.
- Couple kg./cm. (4.8V / 6.0V): 3.9 / 4.8
- Dimensions in mm. : 32.26 x 16.76 x 31.00
- Weight Gr.: 27.94
