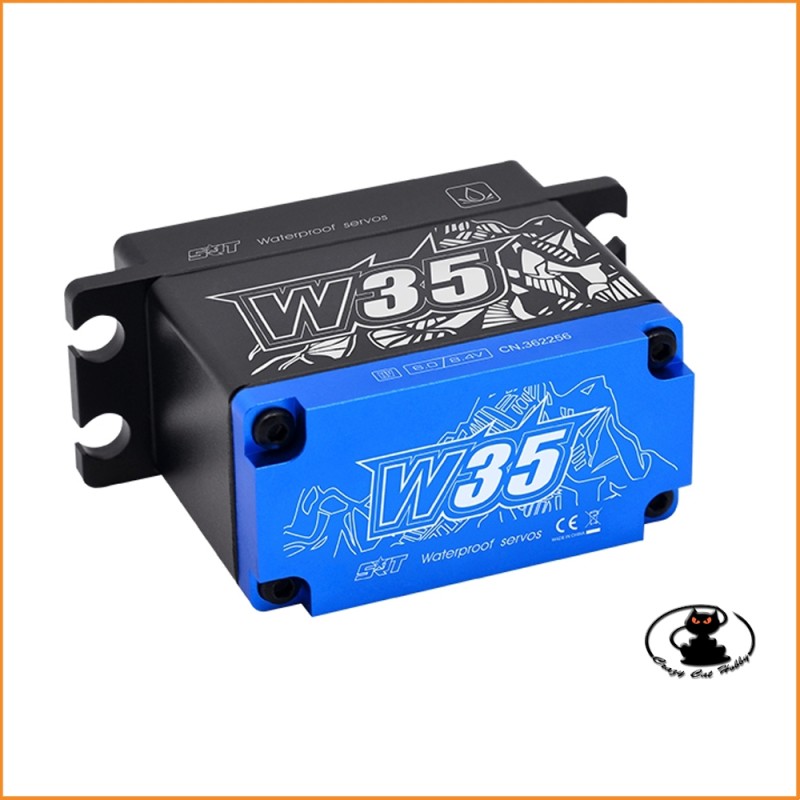

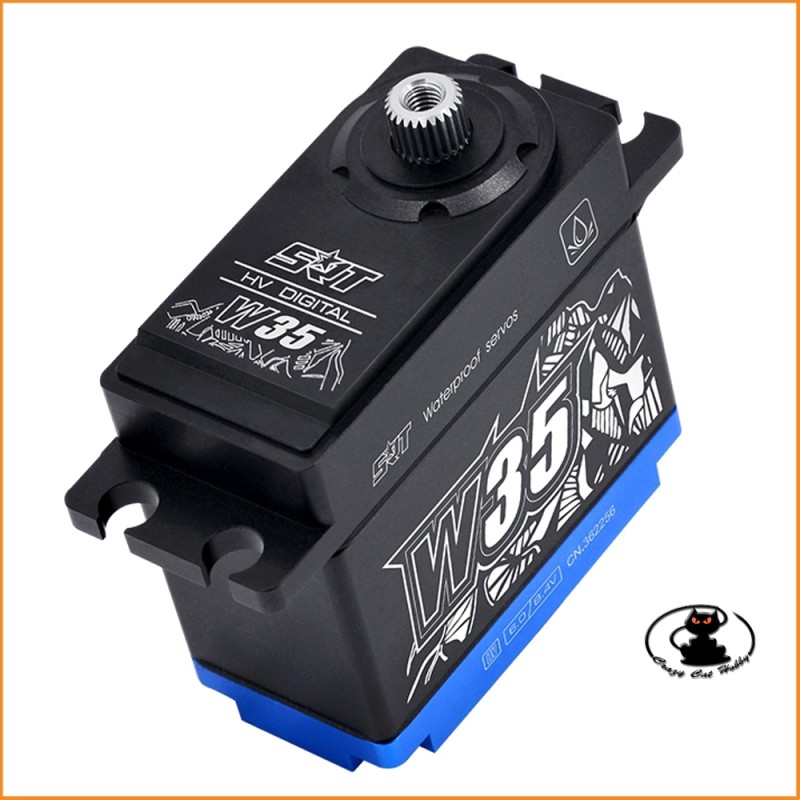

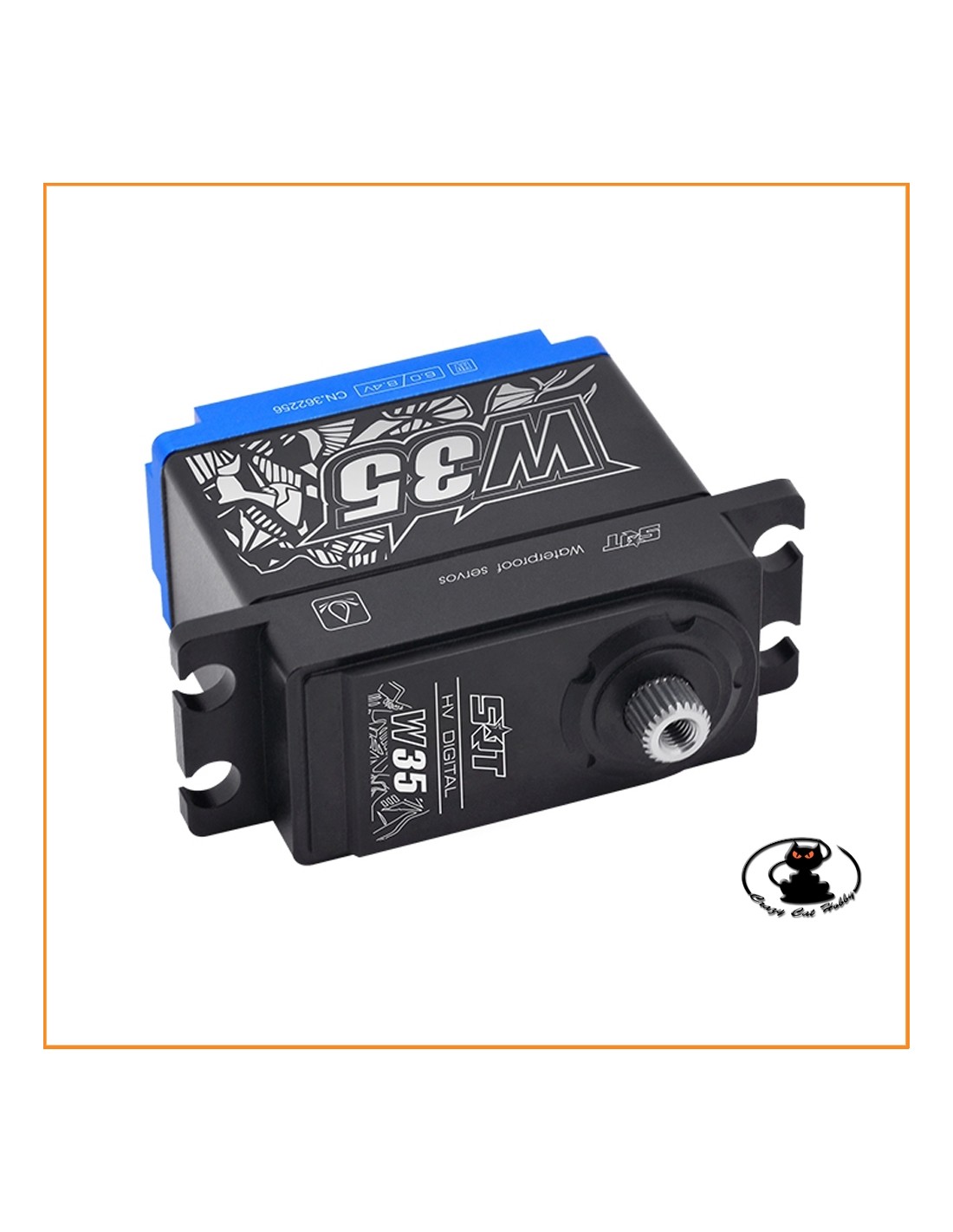

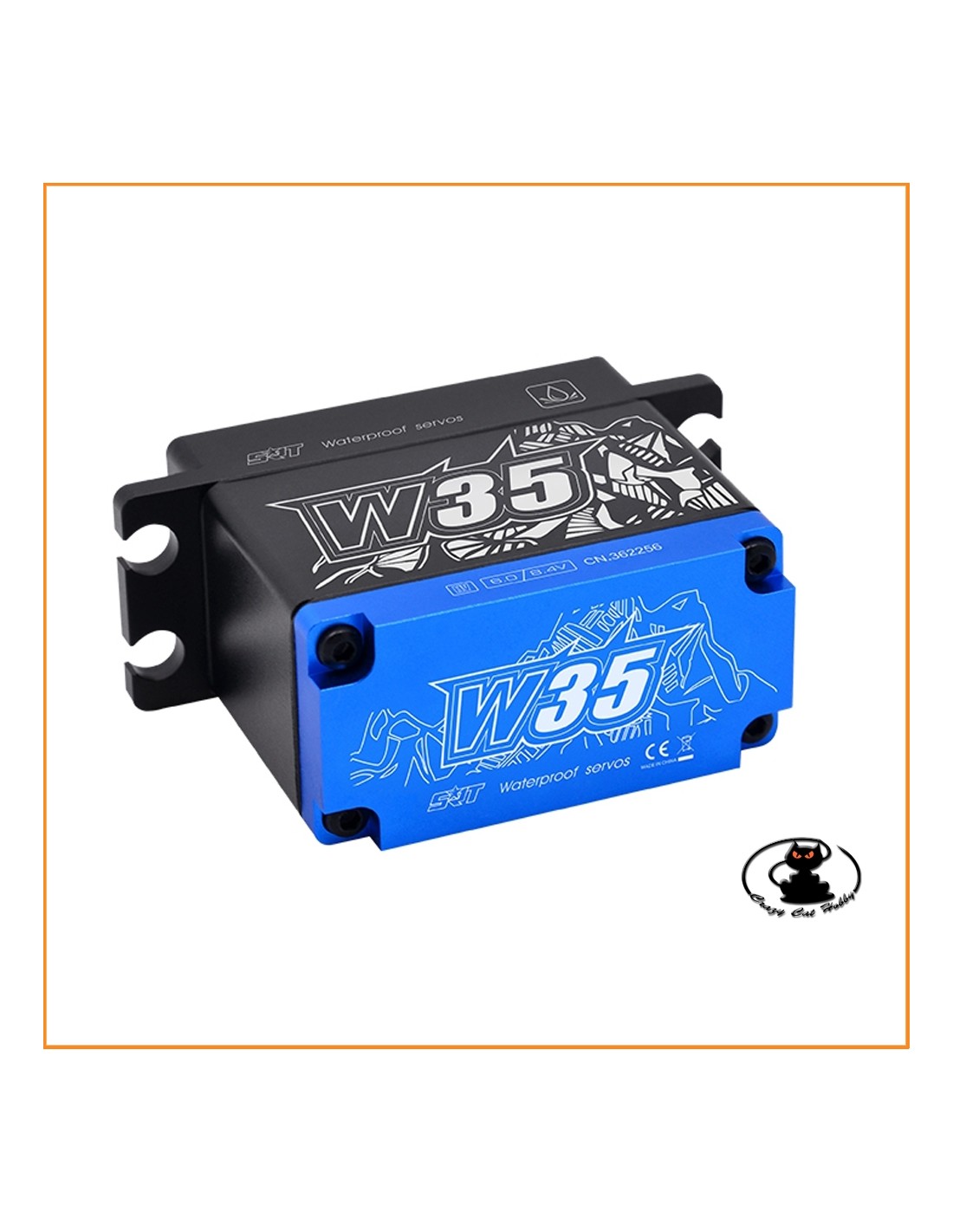

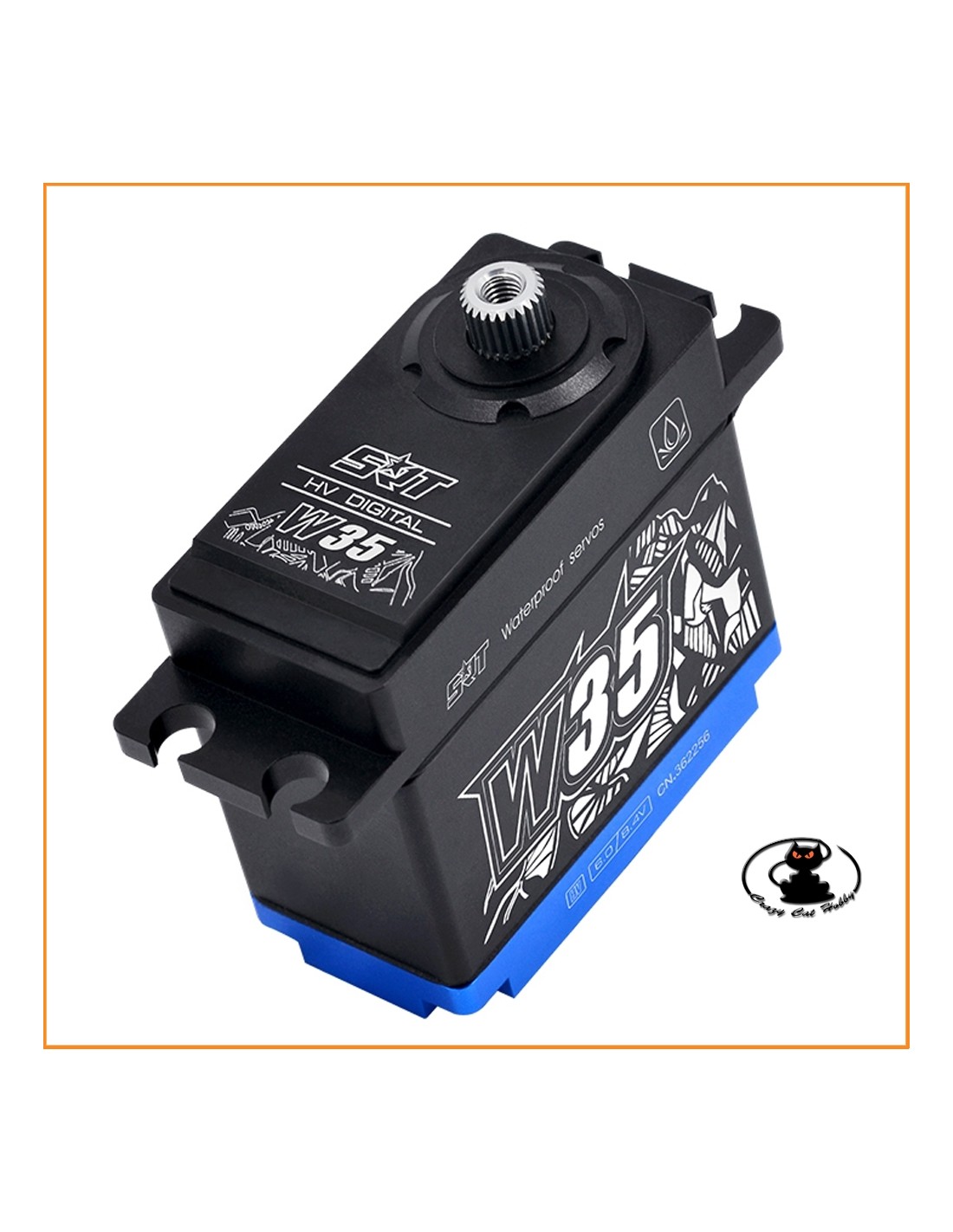

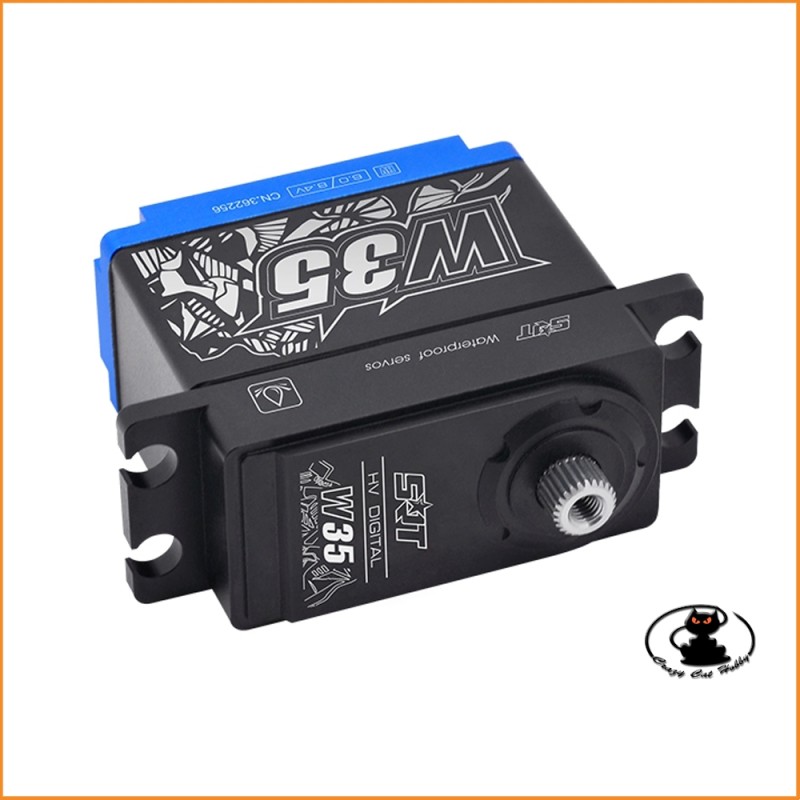

SRT W35 Digital Waterproof 35 kg 0.10 Servo - SRT W35
SRT W35 Digital Waterproof 35 kg 0.10 Servo, for car scaler crowler and boat
SRT W35 Digital Waterproof 35 kg 0.10 Servo, for car scaler crowler and boat
PRODUCT SPECIFICATIONS :
- Type: Digital
- Bearing: Dual
- Motor Type: DC
- Gear Material: Titanium adn steel
- control system: pulse width control
- working frequence: 1520μs / 330hz
- operating voltage: dc6.0-8.4v
- operating speed 6.0V: 0.15 sec/60 degrees at no load
- operating speed 7.4V: 0.12 sec/60 degrees at no load
- operating speed 8.4V: 0.10 sec/60 degrees at no load
- stall torque 6.0V: 25.0kg.cm (347.2 oz/in)
- stall torque 7.4V: 30.0kg.cm (416.6 oz/in)
- stall torque 8.4V: 35.0kg.cm (486.1 oz/in)
- potentiometer drive: direct drive

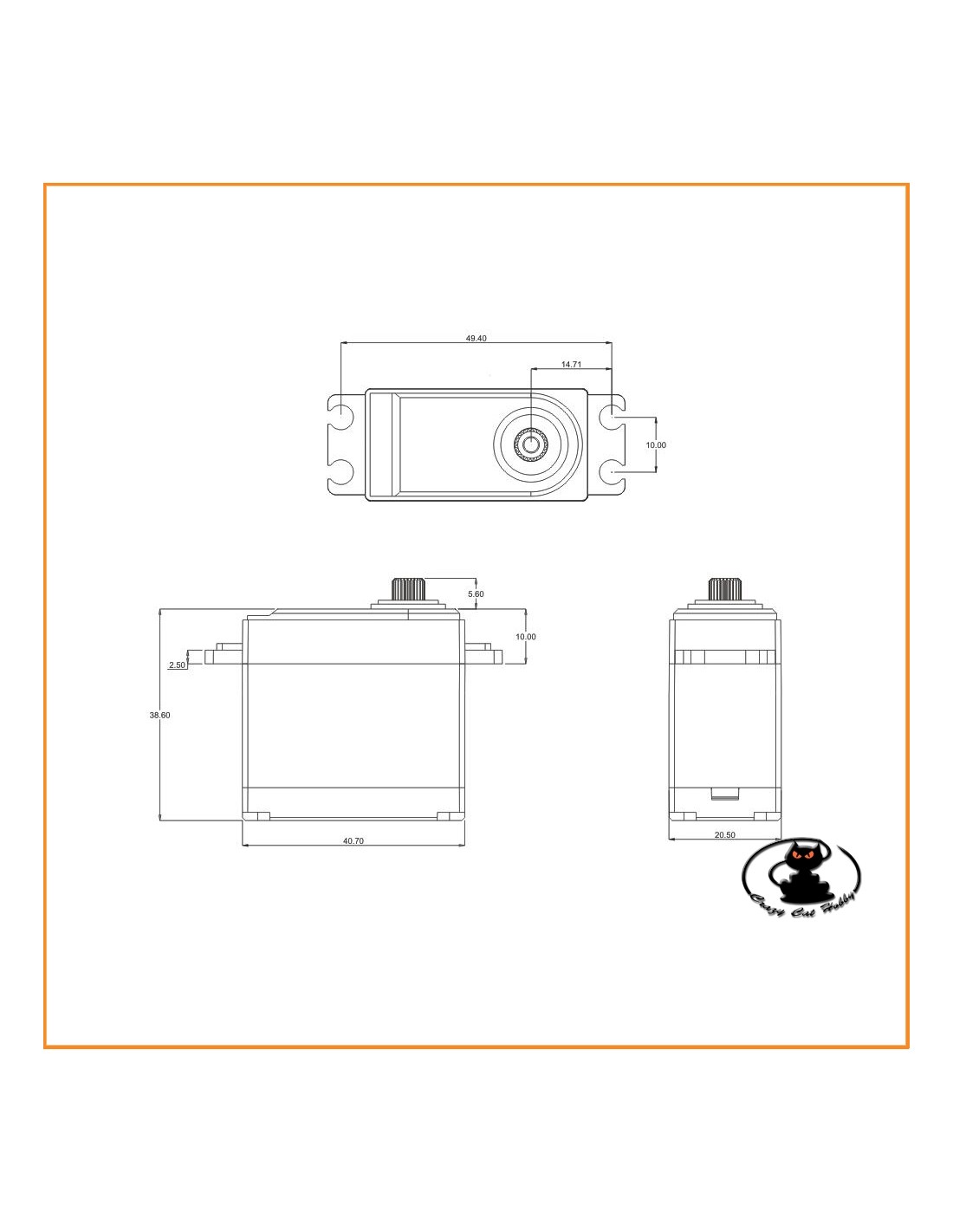

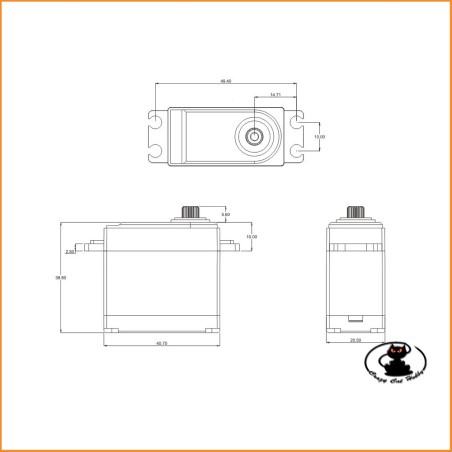

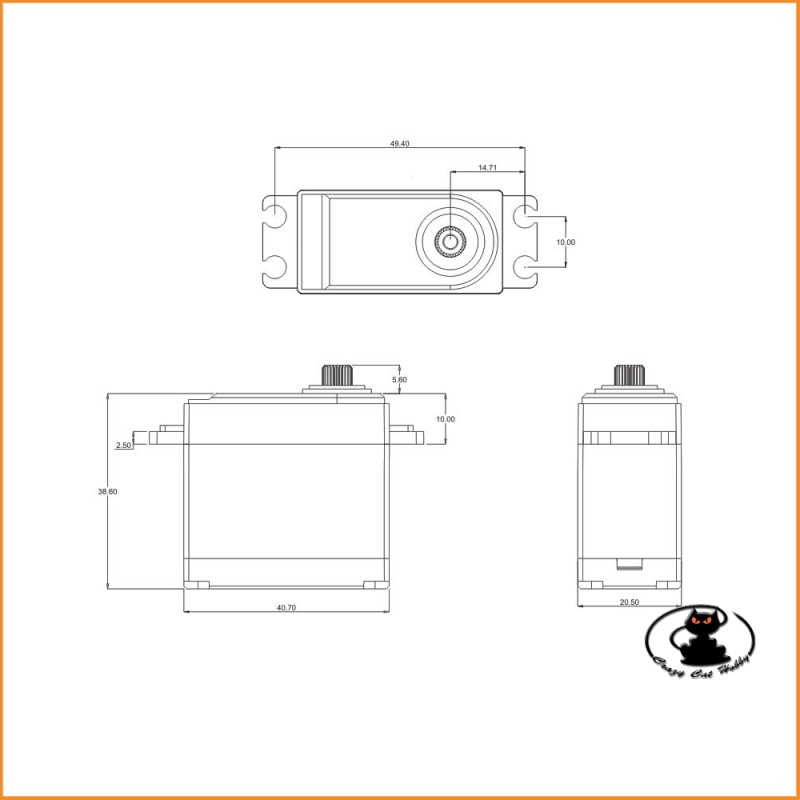

- dimensions: 40.7x20.5x38.6 mm /1.6x0.8x1.52 in
- weight: 82.5g (2.91 oz)
- connector wire length: jr 360 mm
Brand : SRT Racing
Art.: W35
Package content : 1 W35 servos + accessories for use
