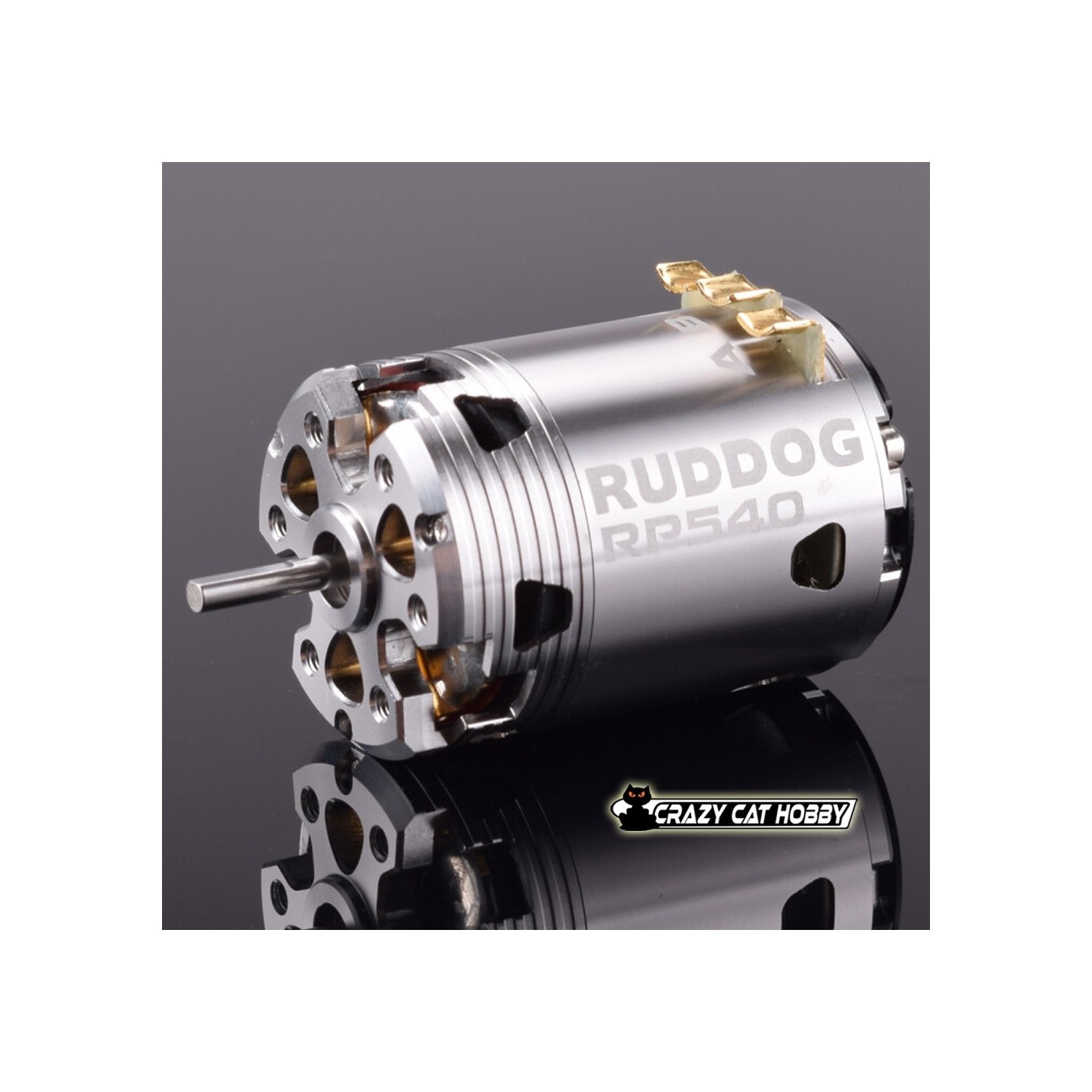

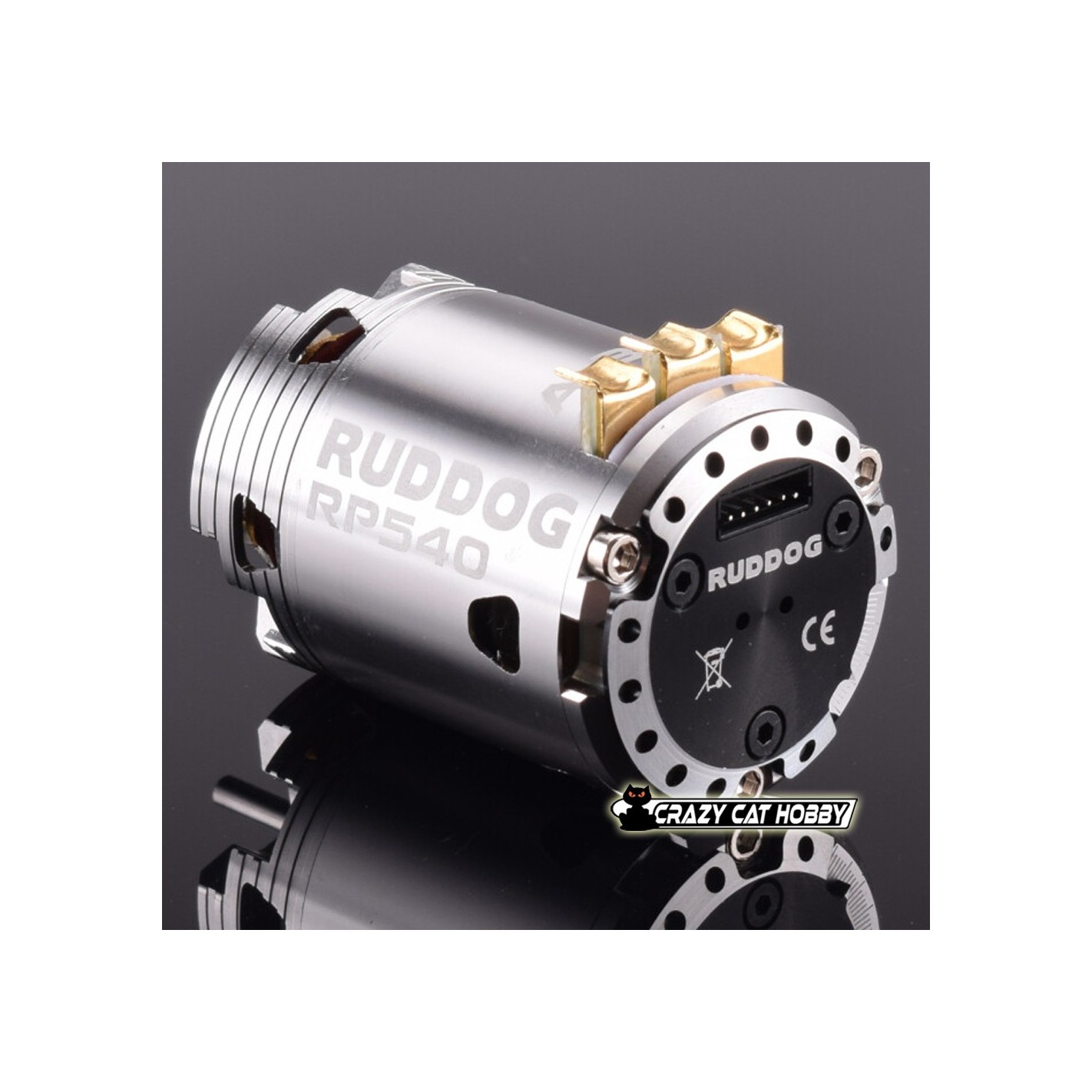

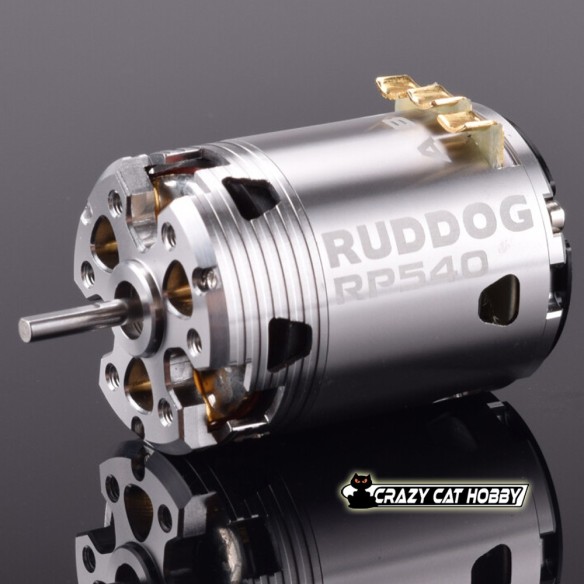

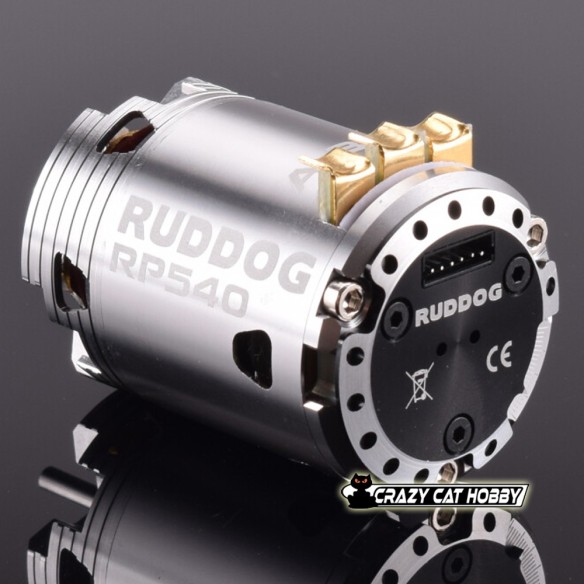

RUDDOG RP540 17.5T 540 SENSORED BRUSHLESS MOTOR - RP-0014

RUDDOG RP540 17.5T 540 SENSORED BRUSHLESS MOTOR - RP-0014

The RUDDOG RP540 sensored competition brushless motor offers the latest technologies in terms development and production of competition motors.

Weighing in at a lightweight 170g the motor is made using highest grade materials including Japan-made steel stator plates and a 99.9% high-temperature pure copper wire.

Large venting openings improve cooling and provide constant performance over the entire runtime even under the hottest of conditions.

Specifications:

• Type: Brushless
• Weight: 165-175g depends on turn rating
• Voltage: 2S/7.4V
• Size: 540 = 36x51.75mm
• Shaft diameter: 3.175mm
• KV rating: 2200 RPM/V
• Power: 130 Watts
• Internal Resistance: 0,0514 Ohm
• Max Current: 34A
• Rotor: ?12.5*?7.2
• Timing: Adjustable from 20 to 60°
• Sensor: Standard Sensor Port / exchangeable

Package content :

RUDDOG RP540 17.5T Brushless Motor

RUDDOG 200mm Sensor Lead
